Description

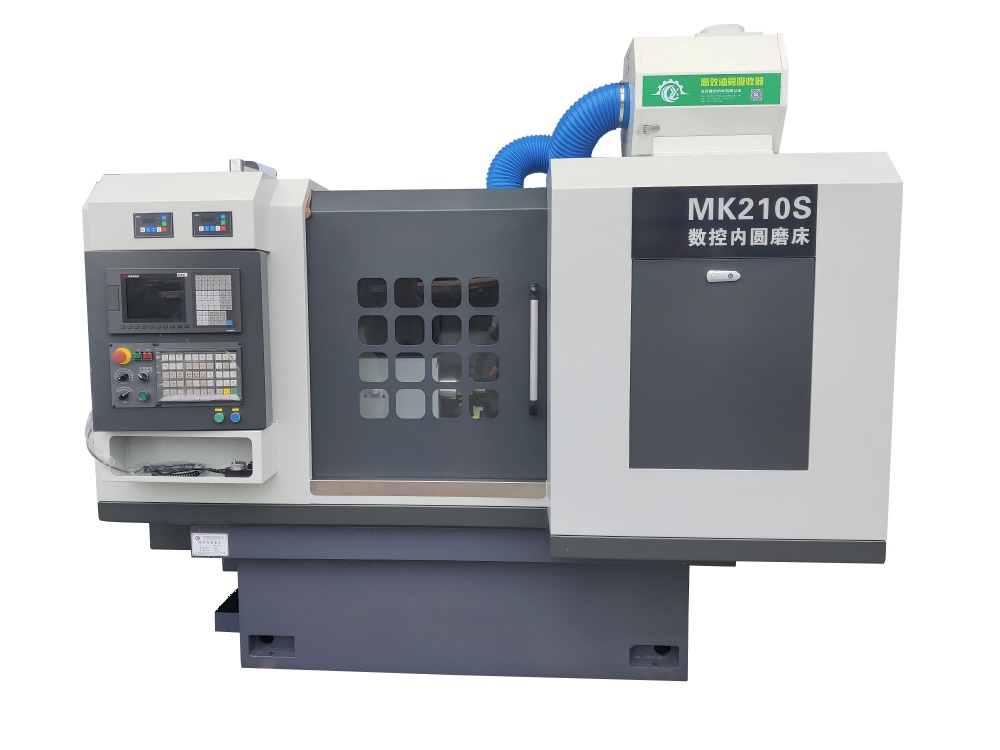

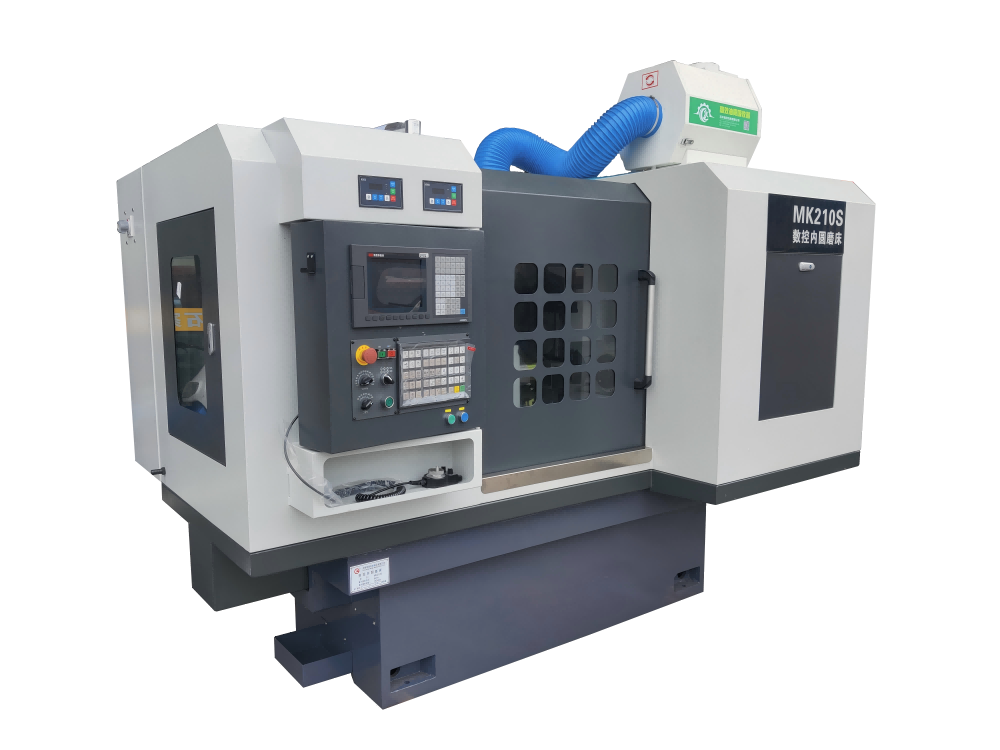

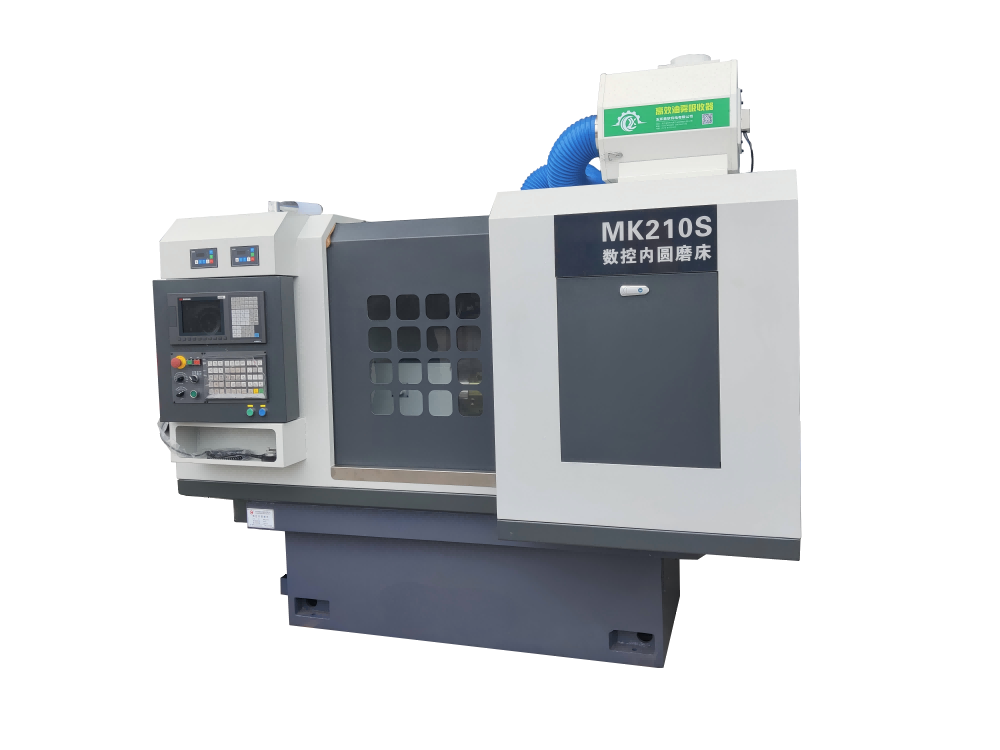

The machine tool adopts an internal cylindrical grinding layout with a set of servo longitudinal and cross feed. The CNC system controls two servo axes, X and Z, enabling two-axis synchronization, and the headstock and grinding head can be adjusted to a certain angle when grinding tapered circles.
4.1.1 The machine tool bed is cast in cast iron and the guide surface is ground and scraped to meet the installation requirements of the guide, ensuring the rigidity of the machine tool;
4.1.2 The machine tool adopts a fully enclosed spray-painted hood, with the observation window using a mesh circle and covered with organic glass structure, ensuring that the grinding wheel does not splash and injure people when it breaks;
4.1.3 This machine tool adopts a layout of reciprocating headstock box and grinding frame feed motion;
4.1.4 Rear electrical box and front rotary operating table as well as an independent cycle start button;
Grinding Capacity of the Host Machine

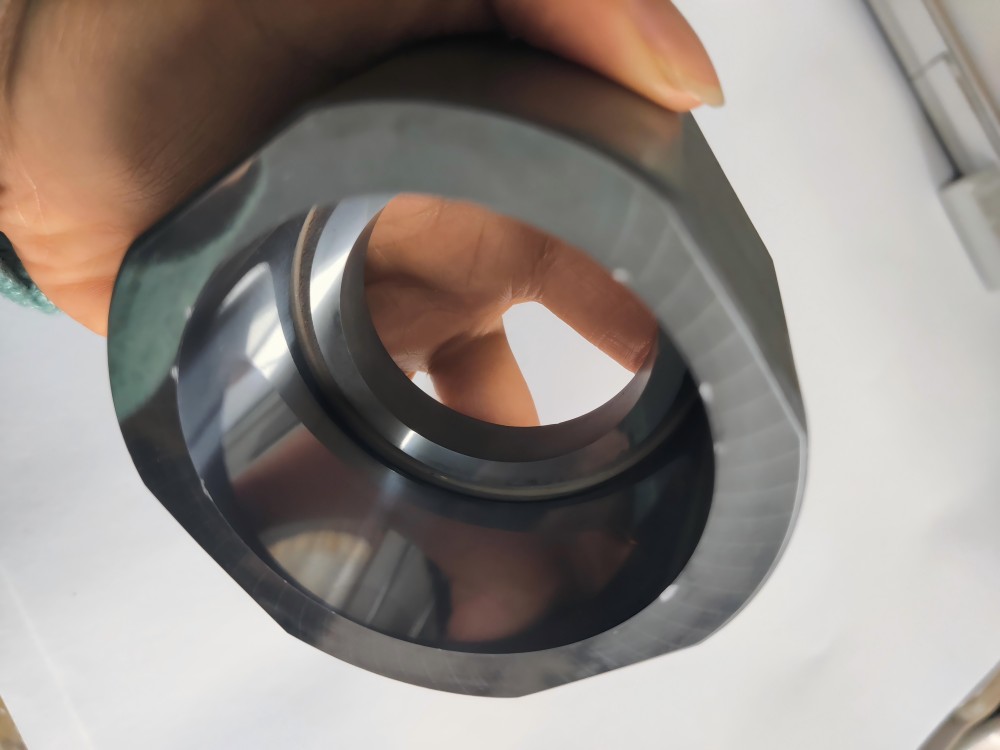

Grinding internal diameter range: φ6 to φ100mm;
Maximum grinding depth: 150mm;
Machine workpiece rotation diameter within the hood: φ350mm;

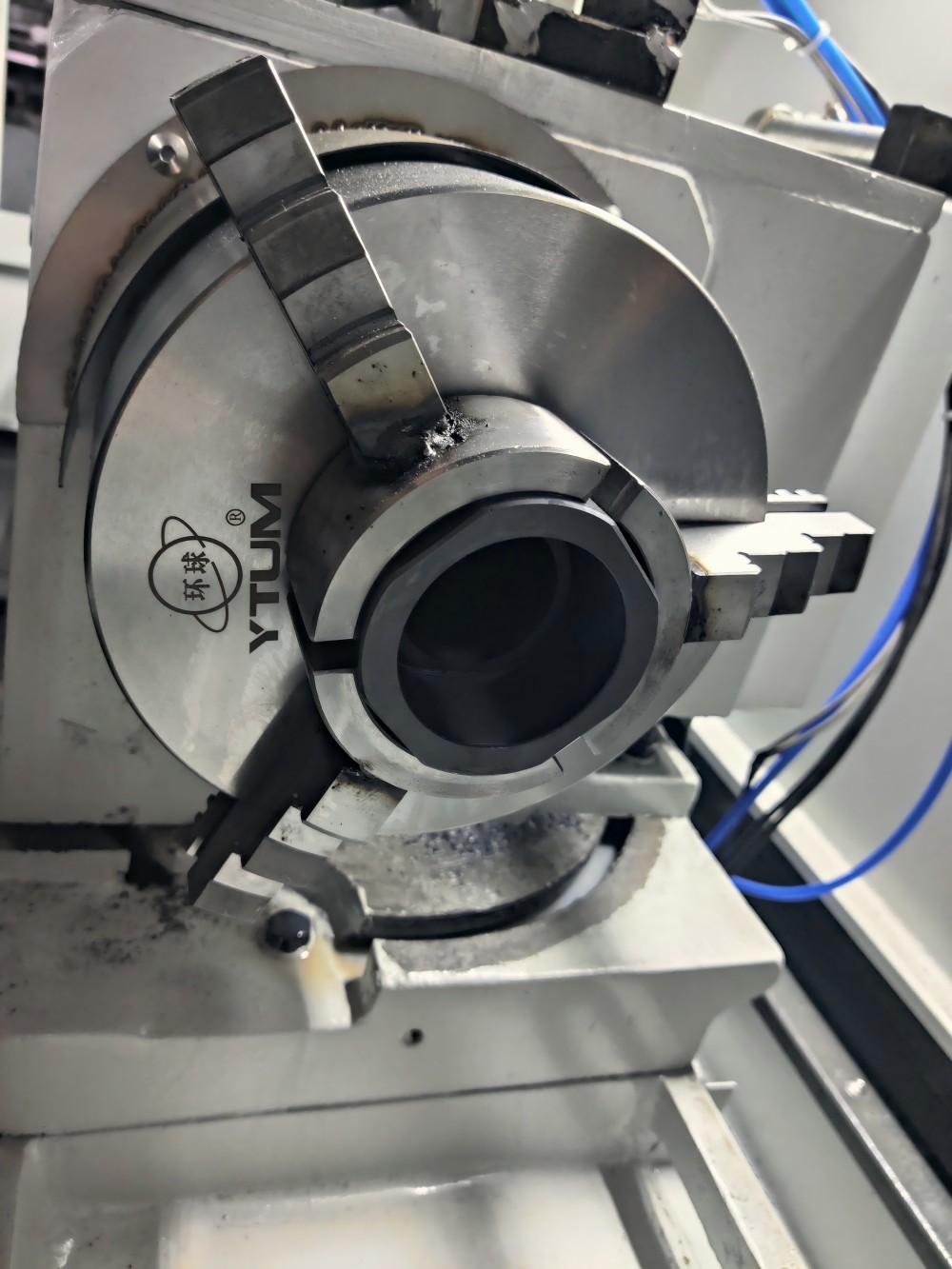

Maximum outer diameter of parts held by the machine: 180mm;
Maximum headstock rotation angle: 30º;
Workpiece speed: 100 to 500r/min (infinite variable speed);

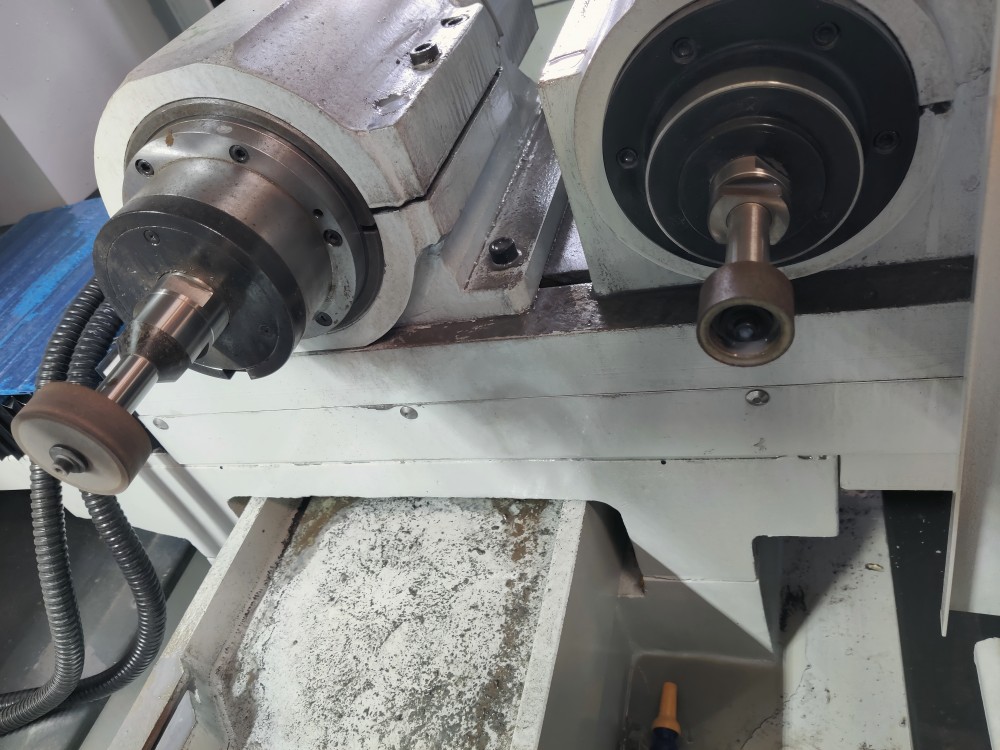

Grinding wheel speed: 24000r/min, 12000r/min (internal hole electric spindle);
X.Z axis power: 10Nm;
Headstock motor power: 2.2KW;
Total machine power: 30kw;
Machine dimensions: 2450×1830×1850mm;
Machine weight: 3500kg;
Roundness: 2um;
Cylindricity: 3um;
Roughness Ra: 0.4um;
Dimensional dispersion: 10um
